在vmware linux 7.5安装oracle 12c rac

作为测试目的安装，环境如下：

OS: OEL 7.5 64-bit (12c 已经不支持32位系统)

db verions: 12.2

node: 2 (rac1.oracle.com,rac2.oracle.com)

IP规划：

1
2
3
4
5
6
7
8
9
10
192.0.2.11  rac1 rac1.oracle.com
192.0.2.13  rac1-vip

192.0.2.12  rac2 rac2.oracle.com
192.0.2.14  rac2-vip

192.0.2.15  rac-scan

192.168.2.11  rac1-priv
192.168.2.12  rac2-priv

安装介质

linuxx64_12201_database.zip

linuxx64_12201_grid_home.zip

oracle linux 7.5.iso

Oracle linux 7.5安装

操作步骤略过。

提下vmware 配置共享磁盘, 在vmx文件里添加如下参数

1
2
3
4
5
6
7
8
9
10
11
12
13
disk.enableUUID = "TRUE"
disk.locking="FALSE"

diskLib.dataCacheMaxSize = "0"

diskLib.dataCacheMaxReadAheadSize = "0"
diskLib.DataCacheMinReadAheadSize = "0"
diskLib.dataCachePageSize = "4096"
diskLib.maxUnsyncedWrites = "0"
scsi1:1.SharedBus="Virtual"
scsi1:2.SharedBus="Virtual"
scsi1:3.SharedBus="Virtual"
scsi1:4.SharedBus="Virtual"

配置yum

1
2
3
4
5
6
7
8
9
10
mkdir /opt/media
createrepo .
yum clean all
yum list

[myrepo]
name=myrepo
baseurl=file:///opt/media
gpgcheck=0
enabled=1

必备参数 用户 组

1
2
3
yum install oracle-database-server-12cR2-preinstall
[root@rac1 yum.repos.d]# id oracle
uid=54321(oracle) gid=54321(oinstall) groups=54321(oinstall),54322(dba),54323(oper),54324(backupdba),54325(dgdba),54326(kmdba),54330(racdba)

可以看到12c默认建了一些新的group分配给oracle用户，另外手动建grid相关的组和用户

1
2
3
4
5
6
7
/usr/sbin/groupadd -g 504 asmadmin
/usr/sbin/groupadd -g 506 asmdba
/usr/sbin/groupadd -g 507 asmoper
/usr/sbin/useradd -u 501 -g oinstall -G asmadmin,asmdba,asmoper grid
/usr/sbin/usermod -u 502 -g oinstall -G dba,asmdba oracle
passwd oracle
passwd grid

关闭selinux

1
2
edit file /etc/selinux/config.
SELINUX=disabled

开启NTP(linux 7为chrony) –我采用ctss 没开启

1
2
systemctl enable chronyd.service
systemctl start chronyd.service

关闭防火墙

1
2
systemctl stop firewalld.service
systemctl disable firewalld.service

安装目录

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
mkdir -p /u01/app/oraInventory
chown -R grid:oinstall /u01/app/oraInventory
chmod -R 775 /u01/app/oraInventory

mkdir -p /u01/app/12.2.0/grid
chown -R grid:oinstall /u01/app/12.2.0/grid
chmod -R 775 /u01/app/12.2.0/grid

mkdir -p /u01/app/grid
chown -R grid:oinstall /u01/app/grid
chmod -R 775 /u01/app/grid

mkdir -p /u01/app/oracle
chown -R oracle:oinstall /u01/app/oracle
chmod -R 775 /u01/app/oracle

环境变量

/home/oracle/.bash_profile

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
export TMP=/tmp
export TMPDIR=$TMP

export ORACLE_HOSTNAME=rac1.oracle.com
export ORACLE_UNQNAME=rac
export ORACLE_BASE=/u01/app/oracle
export GRID_HOME=/u01/app/12.2.0/grid
export DB_HOME=$ORACLE_BASE/product/12.2.0/db_1
export ORACLE_HOME=$DB_HOME
export ORACLE_SID=rac1
export ORACLE_TERM=xterm
export BASE_PATH=/usr/sbin:$PATH
export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

alias grid_env='. /home/oracle/grid_env'
alias db_env='. /home/oracle/db_env'

/home/oracle/grid_env

1
2
3
4
5
6
export ORACLE_SID=+ASM1
export ORACLE_HOME=$GRID_HOME
export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

/home/oracle/db_env

1
2
3
4
5
6
export ORACLE_SID=rac1
export ORACLE_HOME=$DB_HOME
export PATH=$ORACLE_HOME/bin:$BASE_PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib
export CLASSPATH=$ORACLE_HOME/JRE:$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

udev

在linux7 配置12c的udev有些不同

1
2
3
4
5
6
7
8
9
10
11
12
for i in b c d e;
do
echo "KERNEL==\"sd*\", ENV{DEVTYPE}==\"disk\", SUBSYSTEM==\"block\", PROGRAM==\"/usr/lib/udev/scsi_id -g -u -d \$devnode\", RESULT==\"`/usr/lib/udev/scsi_id -g -u /dev/sd$i`\", RUN+=\"/bin/sh -c 'mknod /dev/asmdisk$i b \$major \$minor; chown grid:asmadmin /dev/asmdisk$i; chmod 0660 /dev/asmdisk$i'"\"  >>/etc/udev/rules.d/99-oracle-asmdevices.rules
done

/sbin/udevadm trigger --type=devices --action=change

[root@rac1 rules.d]# ll /dev/asm*
brw-rw---- 1 grid asmadmin 8, 16 Sep 17 14:51 /dev/asmdiskb
brw-rw---- 1 grid asmadmin 8, 32 Sep 17 14:51 /dev/asmdiskc
brw-rw---- 1 grid asmadmin 8, 48 Sep 17 14:51 /dev/asmdiskd
brw-rw---- 1 grid asmadmin 8, 64 Sep 17 14:51 /dev/asmdiske

安装Grid Infrastructure

12.2的grid变成了镜像安装，所以先用grid用户软件解压到对应的目录

1
2
cd /u01/app/12.2.0.1/grid
unzip -q /opt/linuxx64_12201_grid_home.zip

用root用户安装package，所有节点

1
2
3
4
5
6
7
8
9
su -
# Local node.
cd /u01/app/12.2.0.1/grid/cv/rpm
rpm -Uvh cvuqdisk*

# Remote node.
scp ./cvuqdisk* root@rac2:/tmp
ssh root@rac2 rpm -Uvh /tmp/cvuqdisk*
exit

如果要使用AFD Driver (新版ASMLib) 参考如下操作，我这里用的udev

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# Set environment.
export ORACLE_HOME=/u01/app/12.2.0.1/grid
export ORACLE_BASE=/tmp

# Mark disks.
$ORACLE_HOME/bin/asmcmd afd_label DISK1 /dev/asmdisk-c --init
$ORACLE_HOME/bin/asmcmd afd_label DISK2 /dev/asmdisk-d --init
$ORACLE_HOME/bin/asmcmd afd_label DISK3 /dev/asmdisk-d --init
$ORACLE_HOME/bin/asmcmd afd_label DISK4 /dev/asmdisk-d --init

# Test Disks.
$ORACLE_HOME//bin/asmcmd afd_lslbl /dev/asmdisk-c
$ORACLE_HOME//bin/asmcmd afd_lslbl /dev/asmdisk-c
$ORACLE_HOME//bin/asmcmd afd_lslbl /dev/asmdisk-c
$ORACLE_HOME//bin/asmcmd afd_lslbl /dev/asmdisk-c

# unset environment.
unset ORACLE_BASE

exit

开始安装

1
2
[grid@rac1 grid]$ ./gridSetup.sh
Launching Oracle Grid Infrastructure Setup Wizard...

标准cluster

填写cluster名称

添加节点2信息，我选择的两个都是hub节点

对于 12c 版本的集群，除了基本的公网（ Public）和私网（private）之外，由于 flex ASM 的出现，我们还需要一个网络来负责在节点之间传递 ASM 的元数据（meta data）。由于 ASM 的元数据数据量很小，所以，对于大部分的系统可以选择集群的私网和 ASM 使用相同的网络。也就是选择 ASM&Private。

配置asm，我已经做了udev绑定

创建 GI management Repository(a.k.a management DB)。 又是一个 12c 的新特性。对于 12c 的集群， oracle 会创建一个小型的数据库，用于存放 CHM 产生的统计信息，这个数据库被称为 GI management Repository(a.k.a management DB). 当然，这个小型的数据库会和 OCR&VF 存放在相同的位置（磁盘组），我这里选择否

选择外部冗余

设置相同的密码

不配置EM

默认组

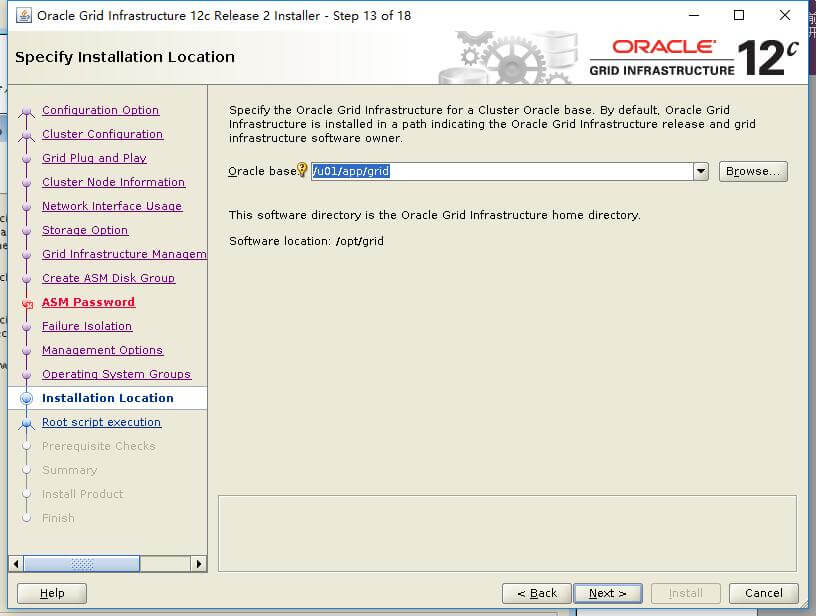

配置base路径

安装信息目录

点击fix and check again

可忽略的错误

点击install

root执行脚本

检查crs服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
[grid@rac2 ~]$ crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.DATA.dg
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.proxy_advm
               OFFLINE OFFLINE      rac1                     STABLE
               OFFLINE OFFLINE      rac2                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.MGMTLSNR
      1        OFFLINE OFFLINE                               STABLE
ora.asm
      1        ONLINE  ONLINE       rac1                     Started,STABLE
      2        ONLINE  ONLINE       rac2                     Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.cvu
      1        ONLINE  ONLINE       rac1                     STABLE
ora.qosmserver
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
ora.rac2.vip
      1        ONLINE  ONLINE       rac2                     STABLE
ora.scan1.vip
      1        ONLINE  ONLINE       rac1                     STABLE
--------------------------------------------------------------------------------

安装database

1
2
3
[oracle@rac1 database]$ ./runInstaller
Starting Oracle Universal Installer...

Install database software only

安装rac

配置ssh互信

选择企业版

选择路径

都选择dba组

我这里没采用dns server 忽略相关错误

执行root.sh

新建实例

Create Database

Typical configuration

错误可忽略

检查rac状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
[grid@rac1 ~]$ srvctl config database -d xb
Database unique name: xb
Database name: xb
Oracle home: /u01/app/oracle/product/12.2.0/dbhome_1
Oracle user: oracle
Spfile: +DATA/XB/PARAMETERFILE/spfile.279.987348781
Password file: +DATA/XB/PASSWORD/pwdxb.258.987348279
Domain:
Start options: open
Stop options: immediate
Database role: PRIMARY
Management policy: AUTOMATIC
Server pools:
Disk Groups: DATA
Mount point paths:
Services:
Type: RAC
Start concurrency:
Stop concurrency:
OSDBA group: dba
OSOPER group: dba
Database instances: xb1,xb2
Configured nodes: rac1,rac2
CSS critical: no
CPU count: 0
Memory target: 0
Maximum memory: 0
Default network number for database services:
Database is administrator managed

通过一个新视图能查看所有实例的状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[oracle@rac1 ~]$ sqlplus / as sysdba

SQL*Plus: Release 12.2.0.1.0 Production on Thu Sep 20 15:43:41 2018

Copyright (c) 1982, 2016, Oracle.  All rights reserved.


Connected to:
Oracle Database 12c Enterprise Edition Release 12.2.0.1.0 - 64bit Production
SQL> desc v$active_instances;
 Name                      Null?    Type
 ----------------------------------------- -------- ----------------------------
 INST_NUMBER                        NUMBER
 INST_NAME                      VARCHAR2(240)
 CON_ID                         NUMBER

SQL> select inst_name from v$active_instances;

INST_NAME
--------------------------------------------------------------------------------
rac1.oracle.com:xb1
rac2.oracle.com:xb2

至此12c rac在OEL7.5上基本安装完毕，后续需要对grid 和database打上最新补丁。
